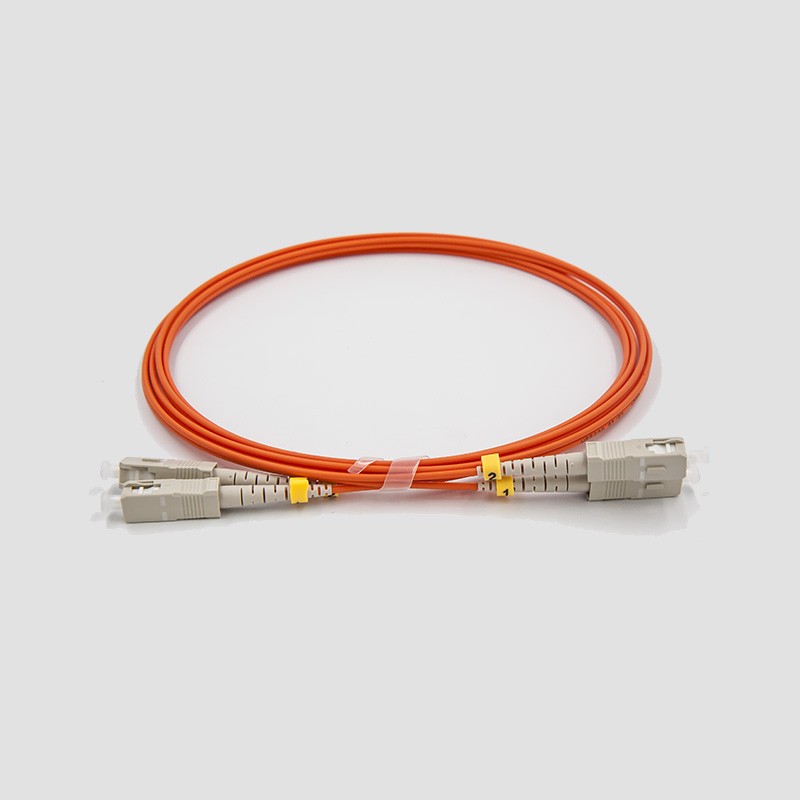

DNS Optika patchcord OM2, 50/125, 2xSC-SC, 5m

DNS Patch cord is made of two parallel sections of multimode fiber optic cable with a lengths of 1, 2, 3, 5, 10 and 15 meter, terminated on both sides with two SC connectors. SC connectors feature simple matching (push-pull coupling with a snap) and rectangular cross-section allowing dense packing of the connectors on the panel.

The optical fiber used in the patch cord is OM2. It provides full compatibility with existing fiber-optic networks based on multimode fibers. The average fiber attenuation is 3.5 dB/km at 850 nm and 1.5 dB/km at 1310 nm. The optical fiber is reinforced by aramid fibers (Kevlar) and covered with PVC sheath.

FEATURES

• Kevlar reinforced
• Comes in standard with 2mm outer jacket.
• All connectors are equipped with zirconia ferruls and conform to TIA/EIA568.3, Bellcore GR-02
• Testprotocol comes with each item.
• Bending radius: 30 mm

 Ordering information

Subject to change without notice
