OM2 2xSC-SC 2m Vaata suuremalt

DNS Optika patchcord OM2, 50/125, 2xSC-SC, 2m

200207

Uus toode

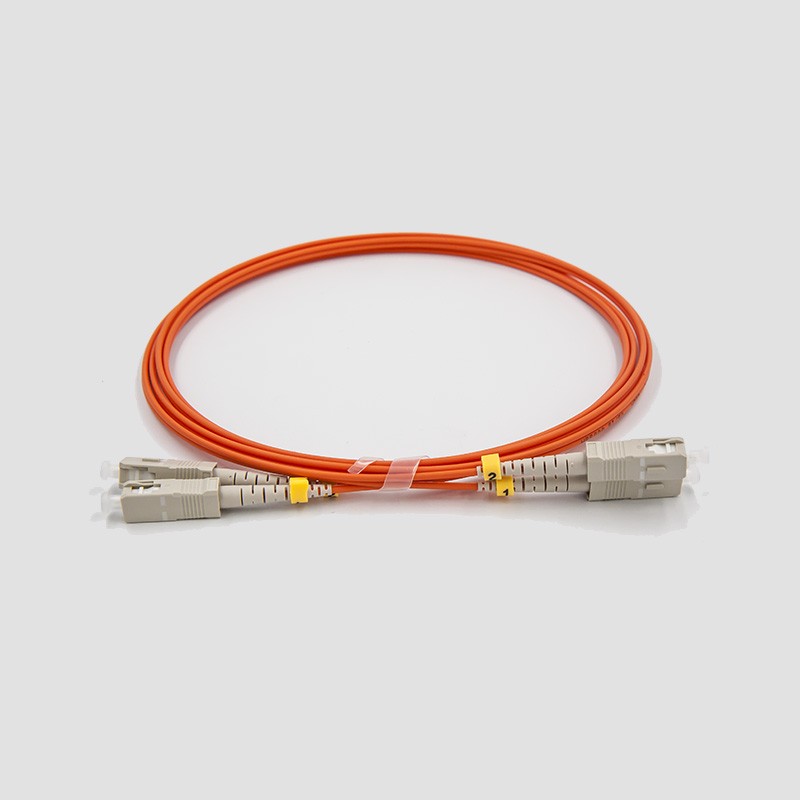

DNS Patch cord is made of two parallel sections of multimode fiber optic cable with a lengths of 1, 2, 3, 5, 10 and 15 meter, terminated on both sides with two SC connectors.

Rohkem infot

Rohkem infot

DNS Patch cord is made of two parallel sections of multimode fiber optic cable with a lengths of 1, 2, 3, 5, 10 and 15 meter, terminated on both sides with two SC connectors. SC connectors feature simple matching (push-pull coupling with a snap) and rectangular cross-section allowing dense packing of the connectors on the panel.

The optical fiber used in the patch cord is OM2. It provides full compatibility with existing fiber-optic networks based on multimode fibers. The average fiber attenuation is 3.5 dB/km at 850 nm and 1.5 dB/km at 1310 nm. The optical fiber is reinforced by aramid fibers (Kevlar) and covered with PVC sheath.

FEATURES

  • Kevlar reinforced
  • Comes in standard with 2mm outer jacket.
  • All connectors are equipped with zirconia ferruls and conform to TIA/EIA568.3, Bellcore GR-02
  • Testprotocol comes with each item.
  • Bending radius: 30 mm



 Ordering information

Code Description Length
200206 DNS OM2 2xSC-SC, 50/125 1 m
200207 DNS OM2 2xSC-SC, 50/125 2 m
200208 DNS OM2 2xSC-SC, 50/125 3 m
200209 DNS OM2 2xSC-SC, 50/125 5 m
200210 DNS OM2 2xSC-SC, 50/125 10 m
200211 DNS OM2 2xSC-SC, 50/125 15 m

Subject to change without notice
