U/UTP C6a LSOH Dca DNS Silverlink T500

400120

New product

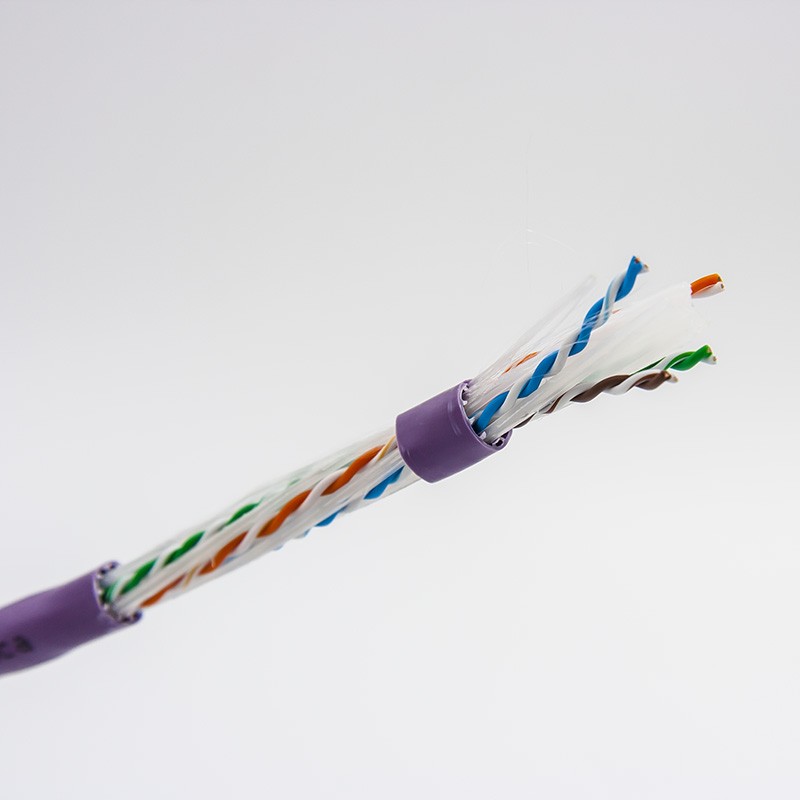

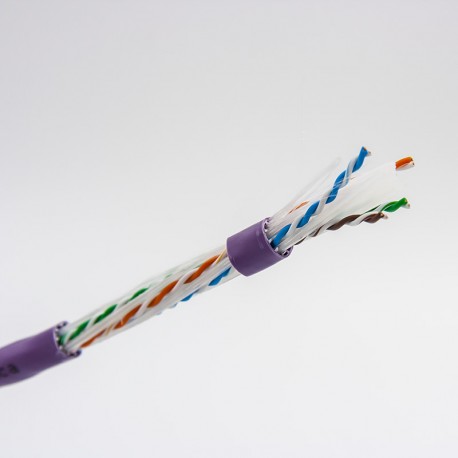

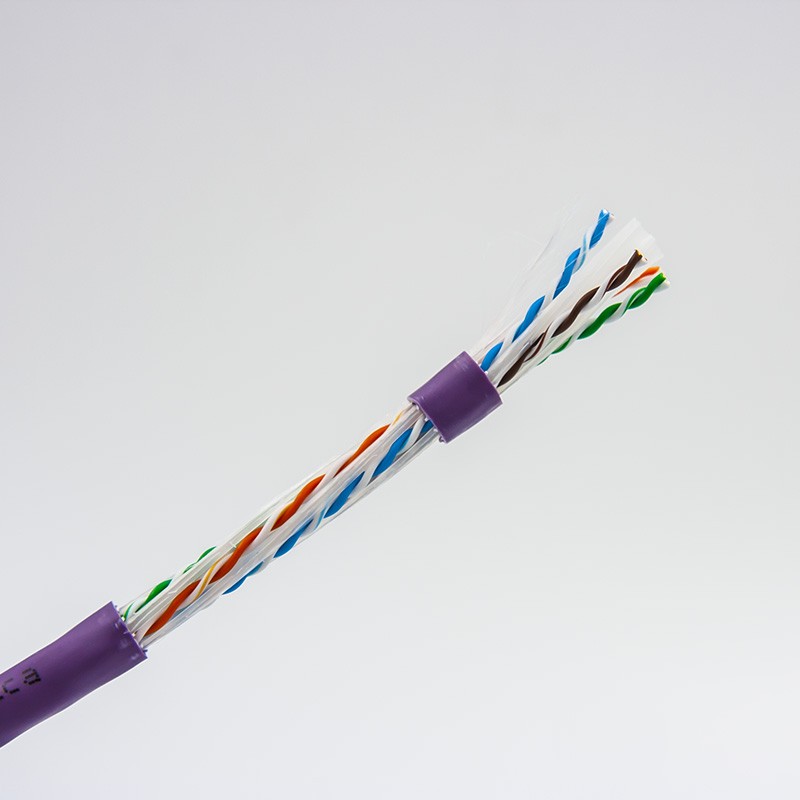

Category 6a Unscreened LSOH Cable manufactured and tested in accordance with the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards. Each cable consists of 8 color coded polyethylene insulated conductors twisted together to form 4 pairs with varying lay lengths. Low Smoke and Halogen Free (LSOH) outer sheath.

More details

More info

Category 6A cables are manufactured and tested to the Category 6A performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.

The cable is also compatible with Category6,  5 and 5e components.

Features and Benefits

  • Tape design engineered for smaller overall diameter and ease of installation
  • Low Smoke and Halogen Free (LSOH) outer sheath
  • Central "X" filler
  • 23AWG conductor
  • Rid Cord
  • 100% tested according to ISO/IEC 11801, EN 50173-1
  • Characterized and tested to 250MHz
  • Positive PSACR up to 300MHz for future bandwidth requirements
  • Unique product-specific packaging for ease of identification
  • Every master reel is tested to ensure electrical performance compliance
  • Print legend contains footage marking from 305M to 0M
  • RoHS compliant
  • EC Verified
  • 25-year DNS warranty



Ordering information:

Code Description
400120 DNS UTP LSOH Cat6a Cable, Silverlink 500 m wooden drum

Subject to change without notice



DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.

Reviews

No customer reviews for the moment.

Write a review

U/UTP C6a LSOH Dca DNS Silverlink T500

U/UTP C6a LSOH Dca DNS Silverlink T500

Category 6a Unscreened LSOH Cable manufactured and tested in accordance with the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards. Each cable consists of 8 color coded polyethylene insulated conductors twisted together to form 4 pairs with varying lay lengths. Low Smoke and Halogen Free (LSOH) outer sheath.
